Supplied with detailed fitting instructions and all required hardware.

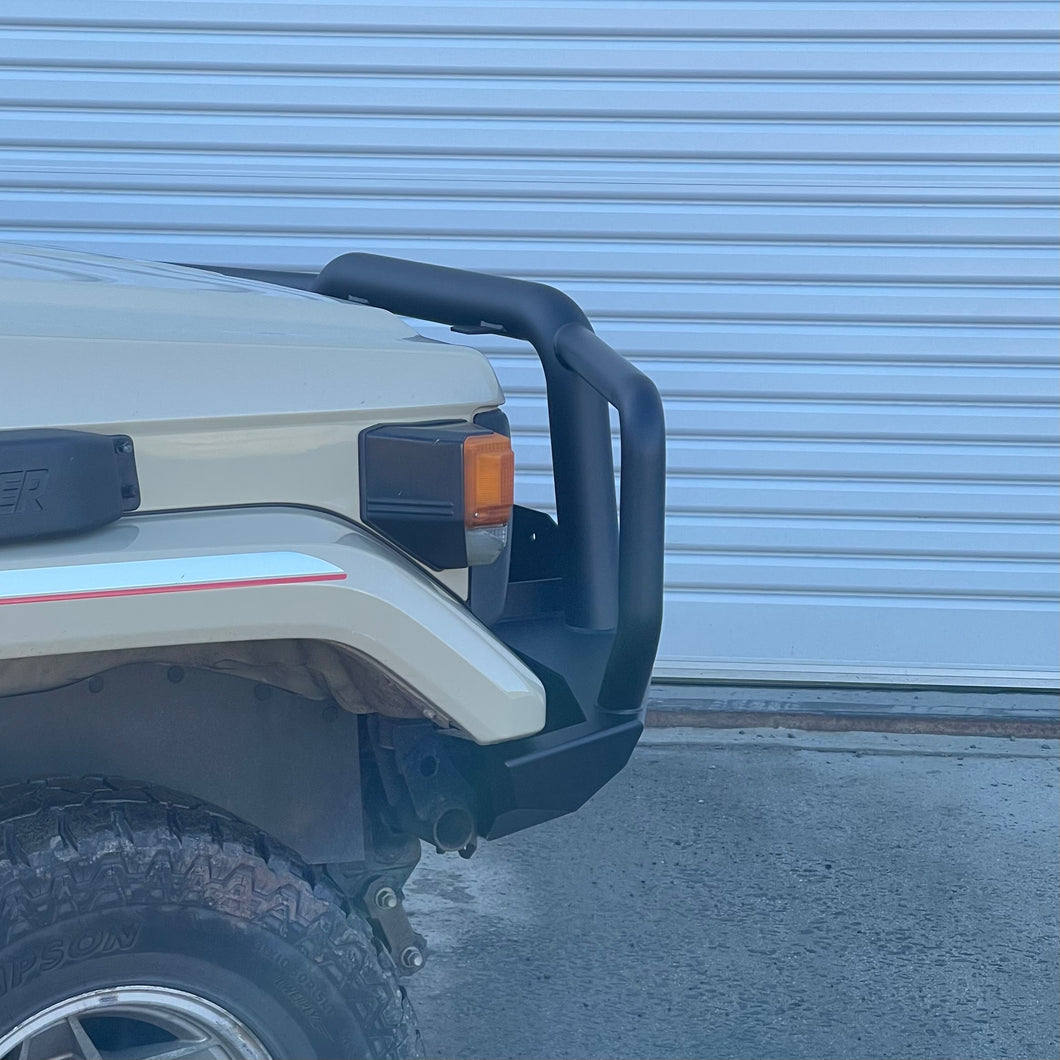

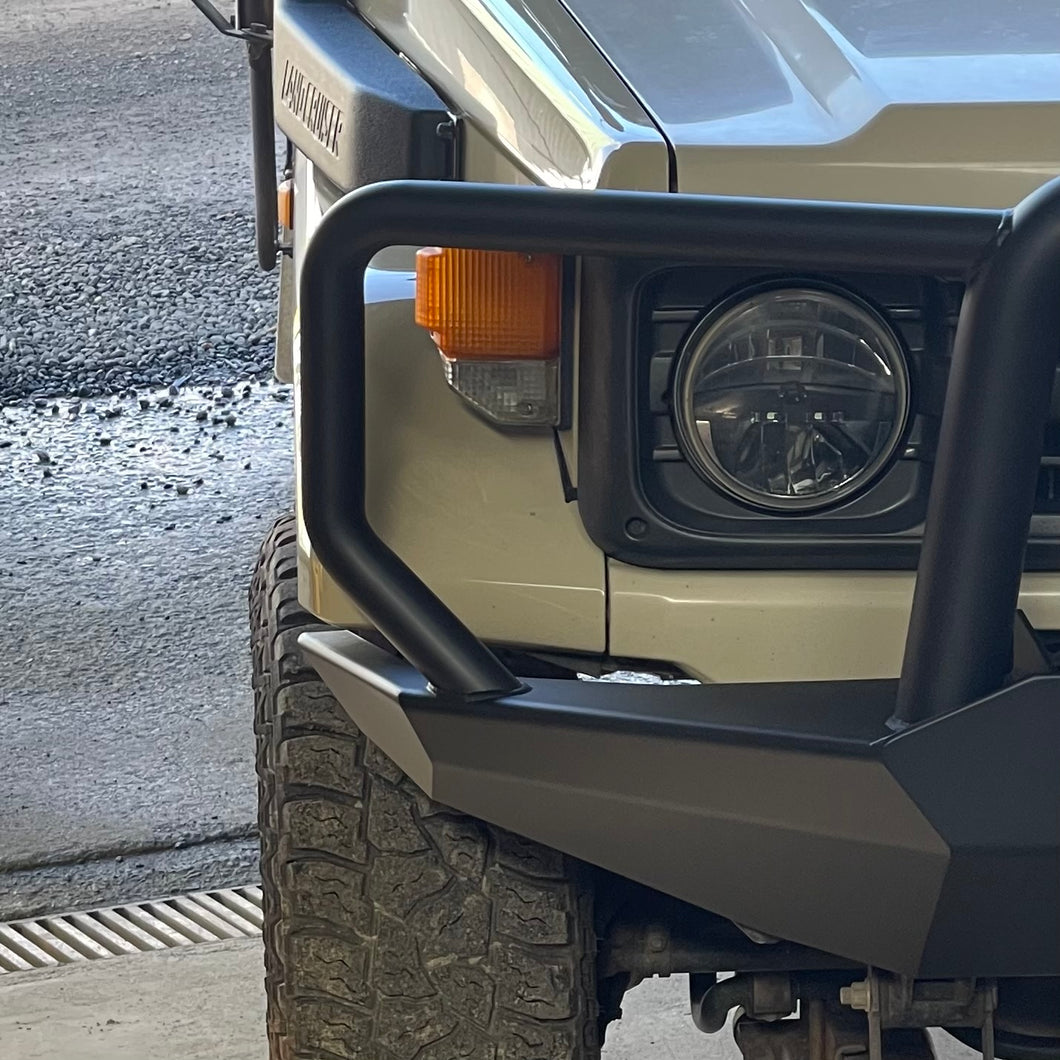

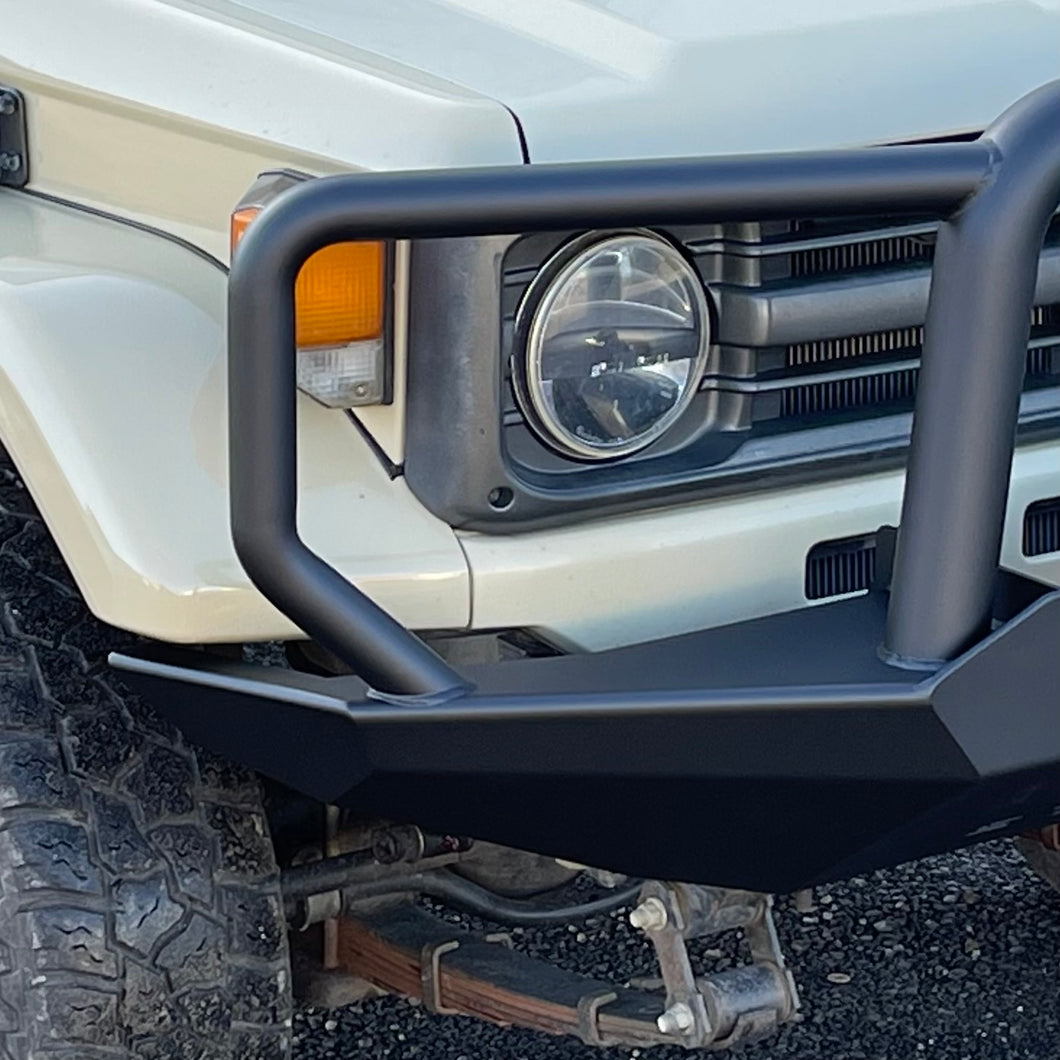

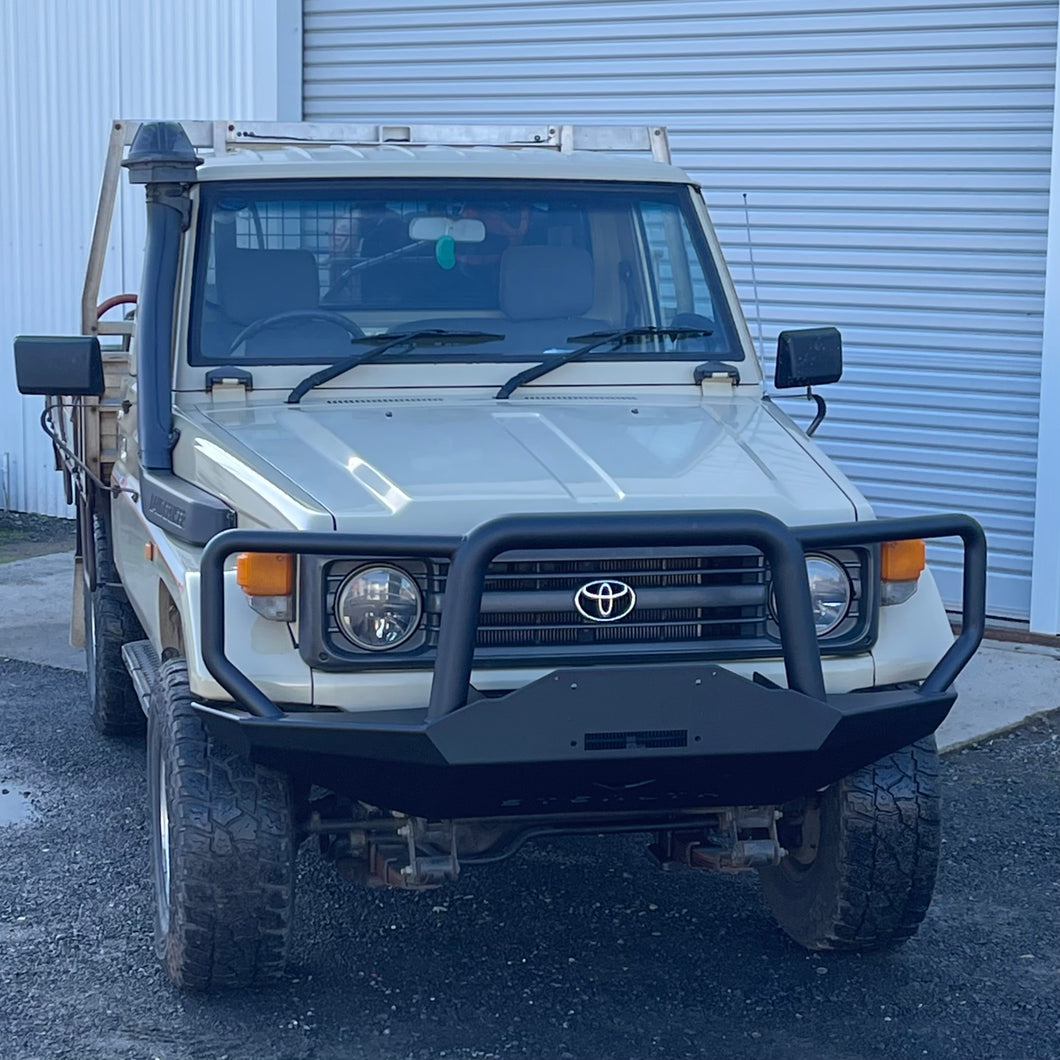

A clean, sleek design to complement the no-fuss lines of the legendary 75 Series! Designed and fabricated in Launceston, Tasmania.
The winch mount and wings are precision welded from laser cut and pressed 5mm HA250 grade plate while the centre and side tubes are 4mm and 3.2mm wall thickness. All steel tube and plate used is 100% Australian from Australian mills. The bar is coarse grit blasted and chemically cleaned to ensure ultimate adhesion of the baked zinc primer before the final matt black powder coat application. Custom powder coat colours are available.
Optional Autolamp IP68 LED indicators and daytime running lights are flush mounted on the inside for a clean look. All high tensile hardware required for fitting is supplied, as well as a number plate holder. The bar comes standard with 2 mounts to suit 9” lights inside the centre tube, and one aerial mount. Please message if you require changes.
This bar suits high mount winches and most low mounts, with the exception of winches with a measurement greater than 175mm between the centre of the motor side mount bolts and the back end of the motor housing.
Bar weight is 50kg
A business address is the preferred option for delivery. Otherwise please select the residential address shipping option if delivery to a residential address is required.
Please note that some remote areas may incur additional shipping charges. We will contact you if this is the case.
Delivery in WA, North QLD, NT and some remote areas must be to a business address.
