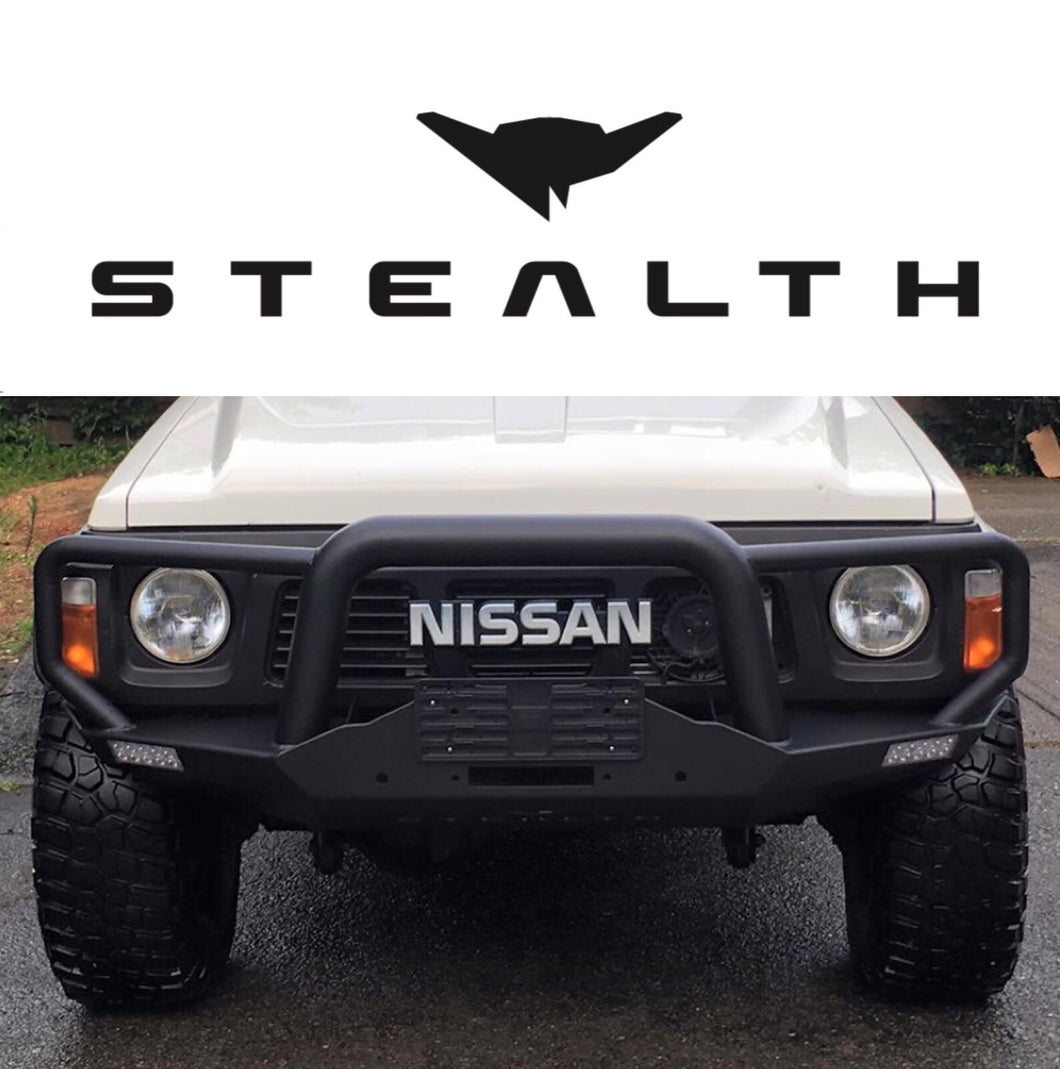

STEALTH GQ PATROL WINCH BAR
HAND BUILT IN TASMANIA
Supplied with detailed fitting instructions and all required hardware.
Designed and engineered for extreme protection and approach angle, while adding a sleek, integrated military look to your GQ Patrol. Designed and fabricated in Launceston, Tasmania.
The winch mount and wings are precision welded from laser cut and pressed 5mm HA250 grade plate while the centre and side tubes are 4mm and 3.2mm wall thickness. All steel tube and plate used is 100% Australian from Australian mills. The bar is coarse grit blasted and chemically cleaned to ensure ultimate adhesion of the baked zinc primer before the final matt black powder coat application. Custom powder coat colours are available.
Autolamp IP68 LED indicators and daytime running lights are flush mounted on the inside for a clean look while ensuring compliance with ADRs. A twin 4.5t WLL rated forged recovery hook kit is available and all high tensile hardware required for fitting is supplied, as well as a number plate holder. The bar comes standard with 2 spotlight and 1 aerial mounts. Please message if you require changes. The radiator support panel corners on some GQs may require a slight trim for this bar.
This bar suits high mount winches and most low mounts, with the exception of winches with a measurement greater than 178mm between the centre of the motor side mount bolts and the back end of the motor housing.
Bar weight is 57kg.
A business address is the preferred option for delivery. Otherwise please select the residential address shipping option if delivery to a residential address is required.
Please note that some remote areas may incur additional shipping charges. We will contact you if this is the case.
Delivery in WA, North QLD, NT and some remote areas must be to a business address.
